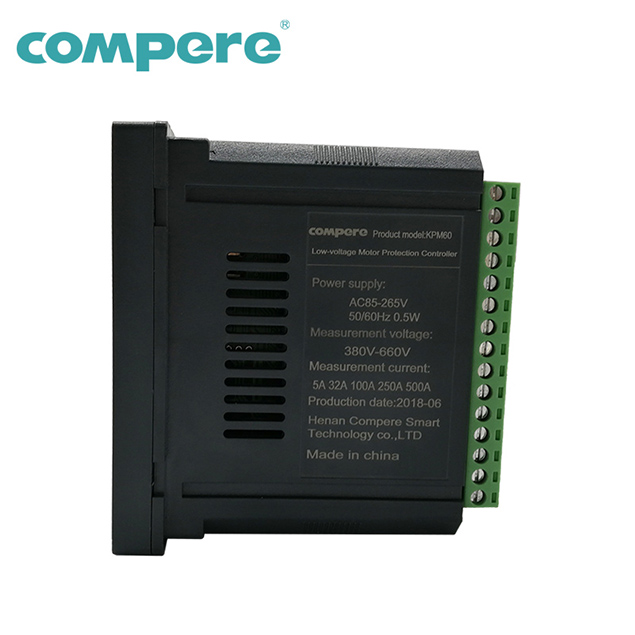

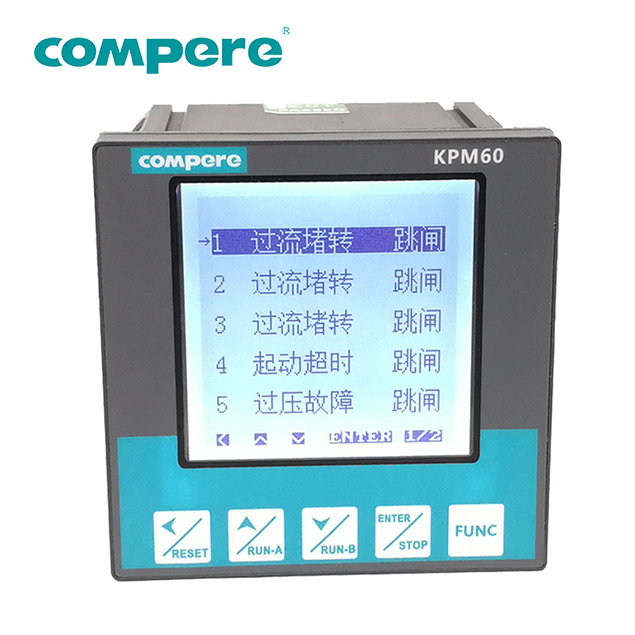

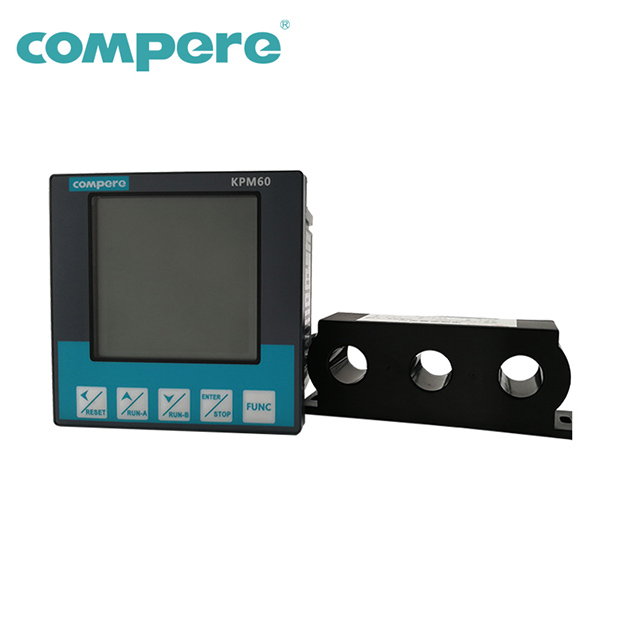

        KPM60 Motor Controller





                            KPM60 series low-voltage motor protection controller is suitable for control protection circuit that rated voltage 380-660V, rated current 5-500A, providing a sound protection and control measures. It could achieve motor network management.












                   Overview
                    Function
                    Specifications

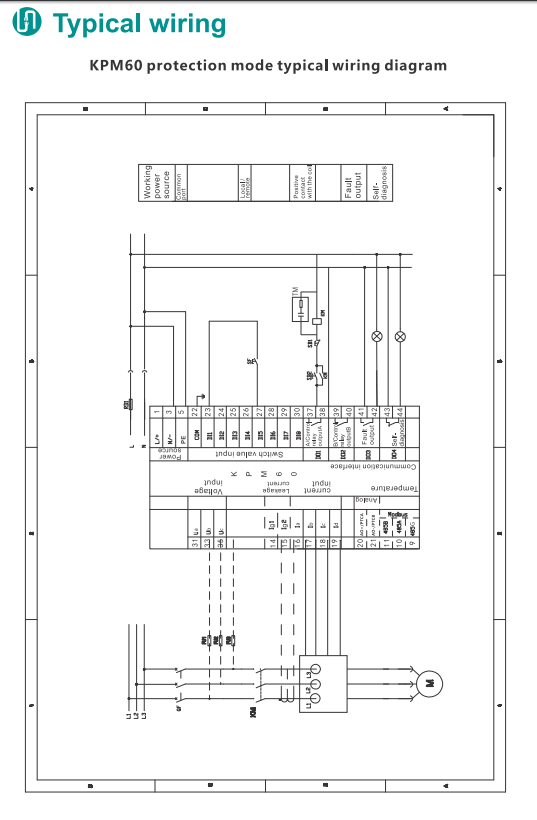

                    Wiring Diagram
                    Download






                            KPM60 series of low-voltage motor protection controller is suitable for control protection circuit that rated voltage 380V to 660V, rated current 5A to 500A , providing a sound protection and control measures, It could achieve motor network management by the communication method that based on a variety of bus, the controller application greatly improves the design and production efficiency, reducing the on-site commissioning and maintenance workload.














                        Function features



Comprehensive motor protection

口Overload protection

口Stall protection

口Current imbalance protection

口Start overtime protection

口Ground protection

口Phase failure protection

囗Contactor sectional current protection

口Underload protection

口Blocking protection

口Leakage Protection

口TE time protection

囗Overvoltage protection

口Undervoltage protection

口Under-power protection

口Power factor protection

口Undervoltage restart

口Phase sequence protection

口Temperature protection

口/External fault protection



Flexible start function

口Protection mode

口Direct start mode

口Bidirectional reversible start

囗Star / triangle start



Communication function

口Modbus-RTU

口Profibus-DP



Control method

口Monitoring center remote control

口Operation panel control

口External input control (Such as: button)



Perfect management function

Use different operating, maintenance and diagnostic data to help users understand possible faults and prevent them with preventative measures.

In the case of failure, rapid diagnosis, positioning

And correct the problem.



Monitoring data

囗Motor status

囗Three-phase current

囗The maximum starting current

囗Heat capacity

囗Ground current

口Leakage current (need to add leakage protection function)

囗Three-phase voltage (need to increase the voltage protection function)

口Active / Reactive power (need to increase the voltage protection function)

口Power Factor (Need to increase the voltage protection function)

口Active / Reactive power (need to increase the voltage protection function)



 Maintain data

口 Motor running time

口 Motor starts times

口 Motor tripping times



Diagnostic data

囗Self-test information

口Current / Auxiliary contact feedback error

口Motor fault alarm information

口Motor fault trip information

囗run cool down time


















				KPM60Low-voltage motor protection controller-Technical parameters





				Working power source

				Operating Voltage

				AC85~265V/DC80~300V







				Rated power

				＜5VA





				Input voltage

				Rated voltage

				380V-660V







				Frequency range

				45~65Hz





				Input current

				Rated current

				5A，32A, 100A, 250A, 500A







				Frequency range

				45~65Hz

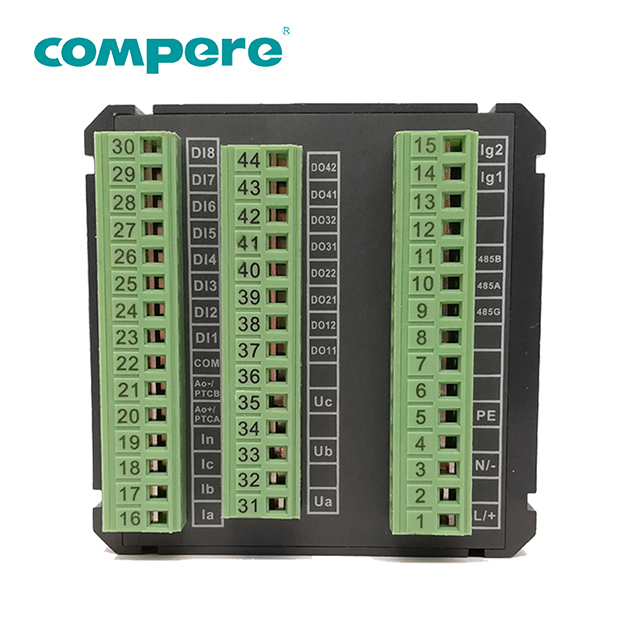

				Input/Output

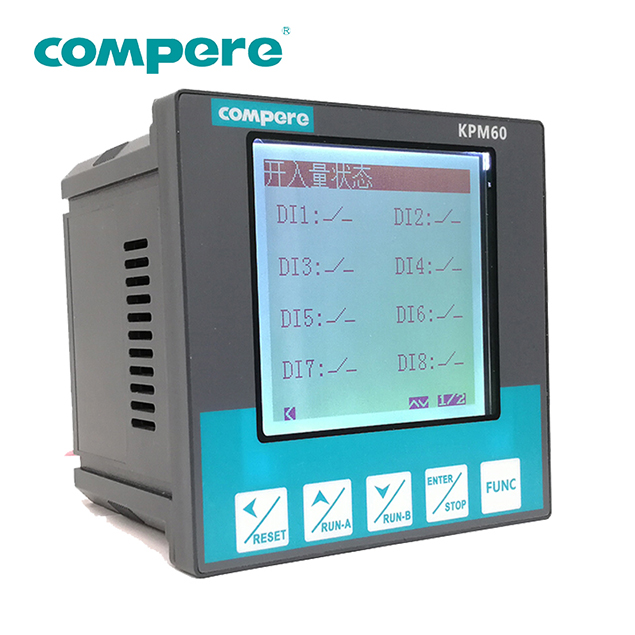

				Switch value input

				8-way passive main line contact DI input, internal supply DC24V power source







				Relay output

				4-way DO output，Contact capacity 250VAC/5A，30VDC/5A







				Analog output

				Output range 4~20mA，Programmable







				Temperature input

				Measure range 0℃~100℃





				Measurement accuracy

				Current

				±1.0%(10%Ie~120%Ie)







				Leakage current

				±1.0%(5%Ise~100%Ise)







				Voltage

				±0.5%(20%Ue~150%Ue)







				Frequency

				±0.02Hz(45Hz~65Hz)







				Power factor

				±1.0%(-1~1)







				Energy

				±2.0%







				Power

				±2.0%





				Communication

				Communication interface

				RS485，Photoelectric isolation interface







				Communication protocol

				Modbus-RTU，1200~38400bps

				Profibus-DP，9600~12Mbps





				Electrical insulation

				Power frequency withstand voltage

				AC2kV/min~1mA Input-output-power source （GB/T 13729）







				Insulation resistance

				＞50MΩ                            （GB/T 13729）







				Impact voltage

				5kV（Peak），1.2/50us    （GB/T 13729）





				Working environment

				Operating temperature

				-25℃ ~ +70℃







				Relative humidity

				5%~95% No condensation







				Storage temperature

				-30℃ ~ +75℃





				Electromagnetic Compatibility

				Surge (impact) immunity

				GB/T 17626.5-2008，Level3







				Electrical fast burst immunity

				GB/T 17626.4-2008，Level3







				 Electrostatic discharge immunity

				GB/T 17626.2-2006，Level3







				Power frequency magnetic field immunity

				GB/T 17626.8-2006，Level3
